Distortion Energy Theory Example. So your component is no longer in a safe design at a lope. At the end of this week, you will take quiz 2 “static failure.”.
For Static Failure Use The Ductile; Distortion E from www.chegg.com

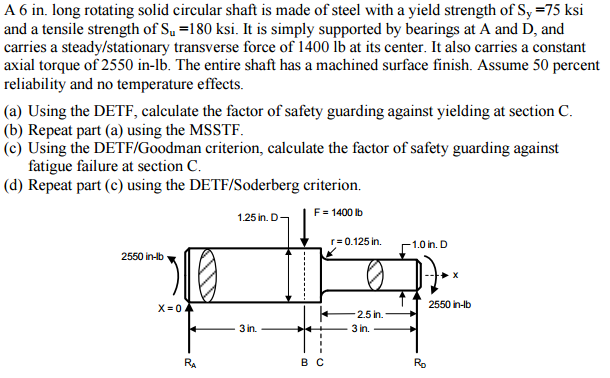

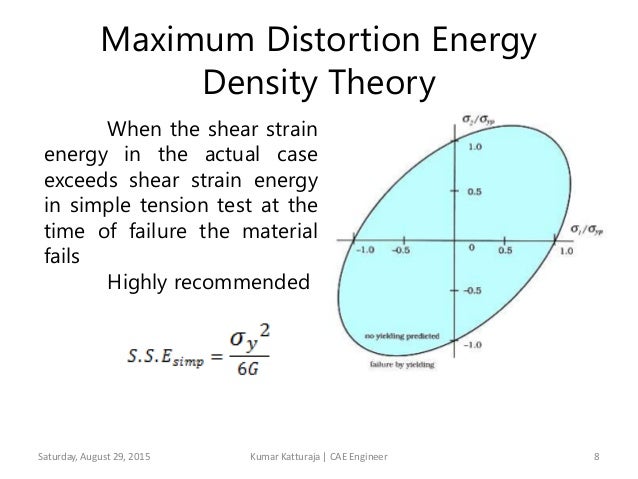

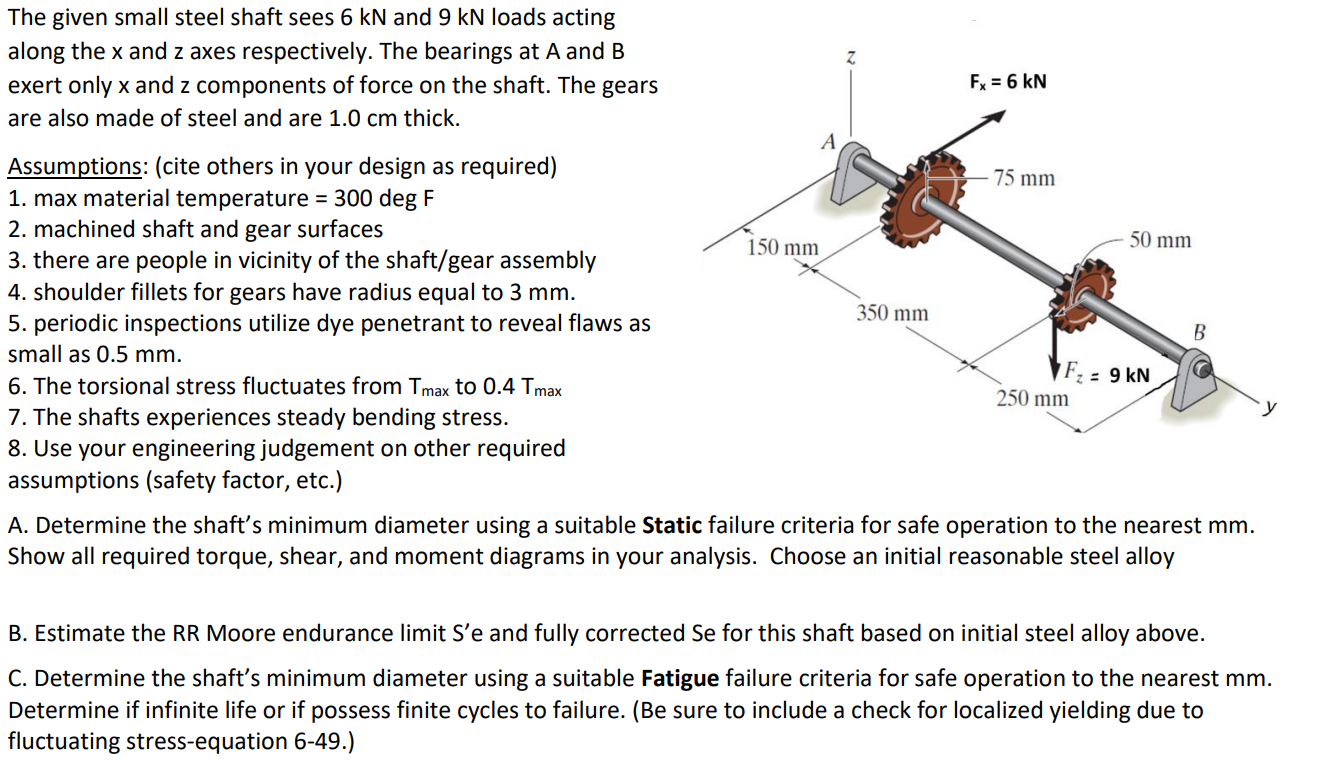

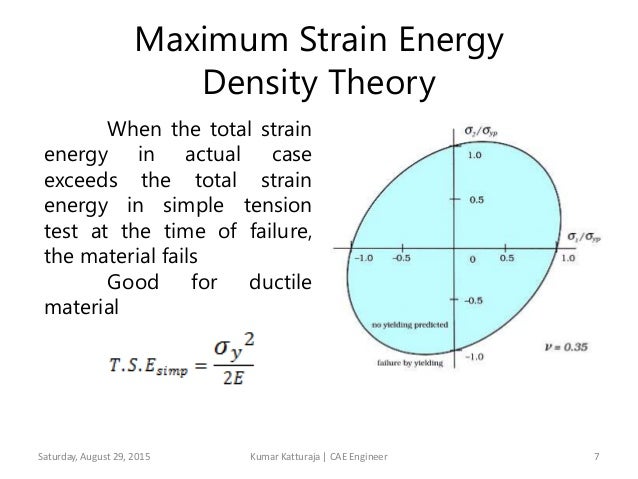

Does the maximum shear stress theory predict failure for the material? The g is the shear modulus. This theory states that the inelastic action at any point in the engineering component starts due to various stresses when the strain energy of distortion per unit volume is absorbed at a point is equal to the strain energy of distortion absorbed per unit volume at any point in a bar which is stressed to the elastic limit under the uniaxial state of stress in the simple tension or.
Prior To Yield, Material Response Can Be Assumed To Be Of A Nonlinear Elastic, Viscoelastic, Or Linear Elastic.

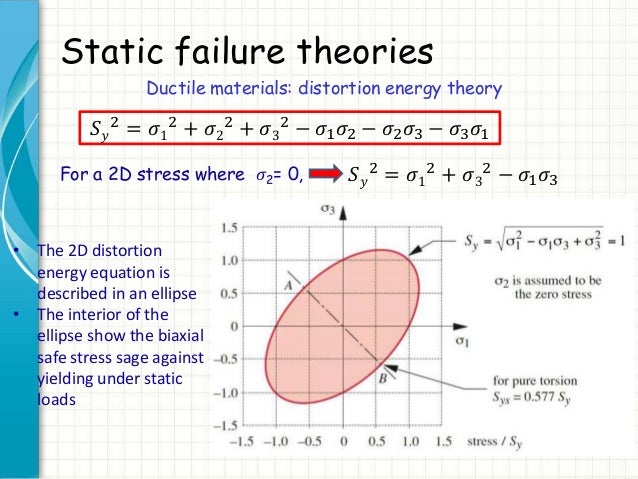

The von mises criterion reduces to, This theory is based on the assumption that strains are recoverable up to the elastic limit, and the energy absorbed by the material at failure up to this point is a single valued function independent of the stress system causing it. For a plane stress problem, (5.23)u d = 1 + μ 3e (σ 21 − σ 1σ 2 + σ 22) also,
Nadai Suggested That Yielding Begins When The Octahedral Shear Stress Reaches A Critical Value, I.e.
Sometimes students find the second equation as an easier form to remember or to understand. Does the maximum distortion energy predict failure for the material? At the end of this week, you will take quiz 2 “static failure.”.

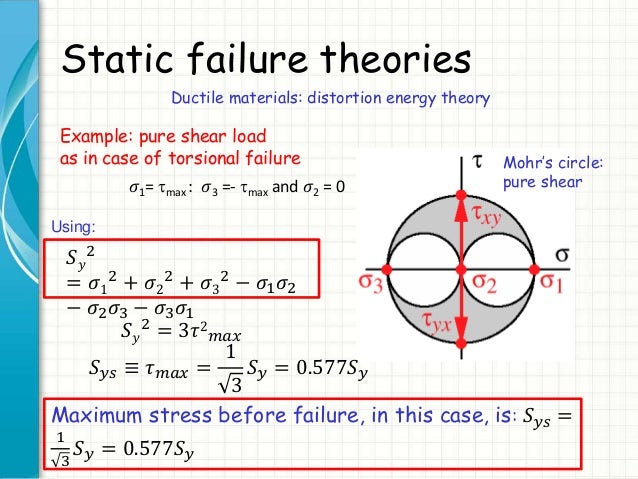

Tension, Compression, And Shear Plotting Mohr’s Circle For Each, Bounding Curve Defines Failure Envelope Fig.

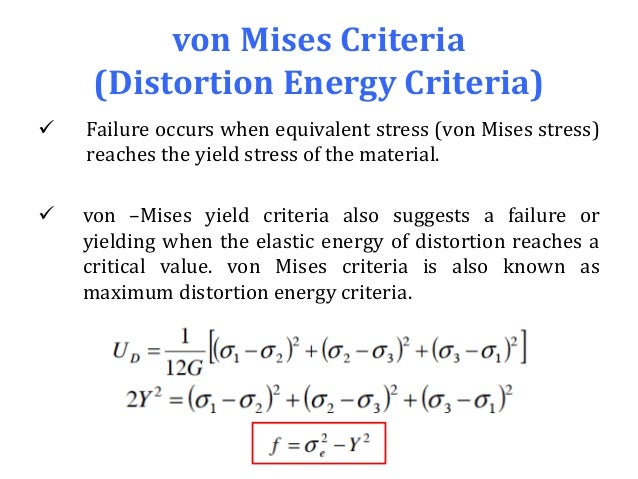

So, as per distortion energy theory, now, the formula for von mises stress, σ v is given by so, the above equation becomes, σ v2 >=σ y2 so , the von mises failure condition can be simplified as follows: 1 strain energy can be separated into energy associated with volume change and energy associated with distortion of the body. So we can plug that in to our equation of yield strength divided by effective strength, and our n is going to be 70 ksi divided by 42.6 ksi.
Since This Should Be True For Uniaxial Stress State Also, The Critical Value Of The Distortional Energy Can Be Estimated From The Uniaxial Test.
The g is the shear modulus. U = 1 2 σ. About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators.
Video Created By ジョージア工科大学（Georgia Institute Of Technology） For The Course Machine Design Part I.
Does the maximum shear stress theory predict failure for the material? Strain energy generally strain energy u is obtained by this equation. This is commonly called distortational energy and can be calculated as.
